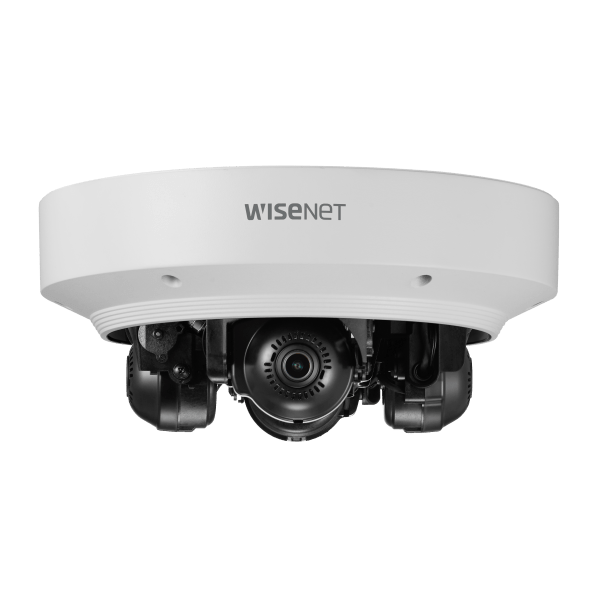

Hanwha Techwin WiseNet P Series PNM-9084QZ 8MP Outdoor PTRZ Four-Sensor Network IP Security Dome Camera

PNM-9084QZ

 8MP H.265 PTRZ Multi-directional Camera

            Compression : H.265,
Lens Type : Motorized (Automatic Zoom) Lens
Lens Size : 3~6mm Lens
Sensor Type : CMOS
Sensor Size : 1/2.8″ Sensor
Direction : Multi-directional
Protection Code : NEMA 4X
Color : White
Environmental : Outdoor
Sensor Size : 1/2.8″

Product Spec



Video
Imaging Device		1/2.8″ CMOS x 4CH
Resolution		1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate		H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination		Color: 0.04lux(F2.2, 1/30sec) BW: 0.004lux(F2.2, 1/30sec)
Lens
Focal Length (Zoom Ratio)		3~6mm(2x) motorized varifocal
Max. Aperture Ratio		F2.2(Wide)-F3.1(Tele)
Angular Field of View		H: 107°(Wide)~56.3°(Tele) / V: 57°(Wide)~31.5°(Tele) / D: 126°(Wide)~64.3°(Tele)
Min. Object Distance		0.5m(1.64ft)
Focus Control		Simple focus
Lens Type		DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range		Remote adjustment (Max. 200cycles) 0~360° / 0~73° / 0~90°
Operational
Camera Title		Displayed up to 85 characters
Day & Night		Auto(ICR)
Backlight Compensation		BLC, HLC, WDR, SSDR
Wide Dynamic Range		120dB
Digital Noise Reduction		SSNRⅤ
Digital Image Stabilization		Support
Defog		Support
Motion Detection		8ea, 8point polygonal zones
Privacy Masking		32ea, polygonal zones – Color: Grey, Green, Red, Blue, Black, White – Mosaic
Gain Control		Low / Middle / High
White Balance		ATW / AWC / Manual / Indoor / Outdoor
LDC		Support
Electronic Shutter Speed		Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation		Flip, Mirror
Analytics		Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
Alarm I/O		Input 1ea / Output 1ea
Alarm Triggers		Analytics, Network disconnect, Alarm input
Alarm Events		File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Alarm output Handover
Audio In		Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out		Line out, Max.output level: 1Vrms
Network
Ethernet		Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression		H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression		G.711 u-law /G.726 G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec		Manual(5ea area), WiseStreamⅡ
Bitrate Control		H.264/H.265: CBR or VBR MJPEG: VBR
Streaming		Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security		HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA)
Application Programming Interface		ONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language		English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage		Micro SD/SDHC/SDXC 4slot 256GB(each CH)
Memory		5GB RAM, 1280MB Flash
Environmental & Electrical
Operating Temperature / Humidity		-40°C~+55°C(-40°F~+131°F) / Less than 90% RH *Start up should be above at -35°C
Storage Temperature / Humidity		-50°C~+60°C(-58°F~+140°F) / Less than 90% RH
Certification		IP66, IK10, NEMA4X
Input Voltage		HPoE
Power Consumption		Max. 33W, Typical 20W
Mechanical
Color / Material		White / Aluminum
RAL Code		RAL9003
Product Dimensions / Weight		Ø251×116.5mm / 3Kg
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)		Wide: 28.4m(11.18ft) / Tele: 71.8m(28.27ft)
Observe (63PPM/ 19PPF)		Wide: 11.4m(4.49)ft) / Tele: 28.7m(11.30ft)
Recognize (125PPM/ 38PPF)		Wide: 5.7m(2.24ft) / Tele: 14.4m(5.67ft)
Identify (250PPM/ 76PPF)		Wide: 2.8m(1.10)ft) / Tele: 7.8m(3.07ft)

• • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
